SNOM_C

SNOM_C/10 (10 separated chips): 2.190 € (Add to cart)

SNOM_C - a set of 10 SNOM aperture cantilevers for contact mode.



Lever sizes and the pyramid position

Pyramid LxWxH = 20x20x13 (70 deg)



Tip shape and aperture size

Pyramid (SiO2) thickness 400-600 nm

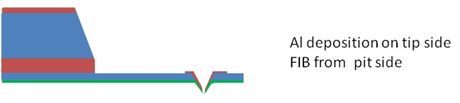

Coating: Al, about 100 nm, coating from bottom side. Bottom FIB milling should is done after coating. Typical aperture diameter is about 120 nm ± 25nm.



Cantilever Specification

Cantilever series

Cantilever length, L±10µm

Cantilever width, W±3µm

Cantilever thickness, µm

Resonant frequency, kHz

Force constant, N/m

min

typical

max

min

typical

max

min

typical

max

SNOM_C

500

55

3

4

5

15

21

27

0.41

1

2.3
